Lil' Yami

Overlay Mapping

Recommended Posts

Introduction:



Since some people like the overlay mapping (aka parallax mapping), I have code this thing to Ace. I have used Hanzo Kimura’s idea to make this, of course this script have a new feature to make each layer in a map can be swapped to another image by variable. This means you can make day/night, etc… in ONE map.



Features:



- Have 4 layer: Ground, Parallax, Light, Shadow (Ground is under Character + Event)

- Easily make day/night or change overlay after event occuring.



Download:



Check my blog

or Direct Link here & Demo

Edited by Yami

Share this post


Link to post
Share on other sites

Hanzo isn't the only one who thought of it but at least Yami posted that s/he did get inspired by Hanzo's idea from the topic. So I think a credit on the script itself is optional?

Edited by Archeia Nessiah

Share this post


Link to post
Share on other sites

@Ponder

In a way, yes. An image similar to a parallax map acts like a layer in itself, and the script lets you to have a shadow layer, etc. via transparent images. Think of it like parallax mapping but with more ease.



It's worth using! Try the script.. ;3



Share this post


Link to post
Share on other sites

Do you can make a way that we can change de RGB collor ingame of the images in the overlay directory?

I assume you meant the Tint? It of course can and should be changed in the editor ;)

Share this post


Link to post
Share on other sites

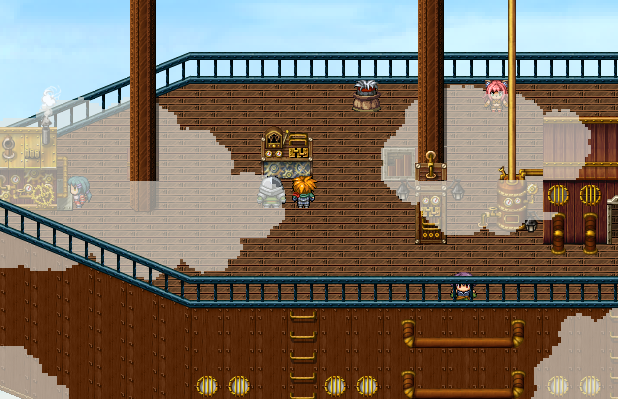

Yami, I started using your Overlay Mapping and got a weird issue with Victors Fog script. :s

(Using the columns and such that appear over the fog as parallaxes in the picture below.)


Is there a quick fix to somehow set the parallax layer under the fogs level, or is this something I would need to talk to Victor about?



Link to his fog script:

http://www.rpgmakervxace.net/index.php?/topic/411-victor-engine-fog-effects/

Share this post


Link to post
Share on other sites

@Lear: test this edited fog (only edit viewport ~)



#==============================================================================
# ** Victor Engine - Fog Effect
#------------------------------------------------------------------------------
# Author : Victor Sant
#
# Version History:
#  v 1.00 - 2011.12.19 - First relase
#  v 1.01 - 2011.12.30 - Faster Regular Expressions
#  v 1.02 - 2012.01.02 - Fixed fog dispose when changing maps
#------------------------------------------------------------------------------
#  This script allows to add varied of effects to the maps. Fos are picutres
# placed above the player layer and loops. Differently from pictures the fog
# follows the map movement instead of the screen (this behavior can be changed)
# You can add various fogs to the map.
#------------------------------------------------------------------------------
# Compatibility
#   Requires the script 'Victor Engine - Basic Module'
#
# * Overwrite methods
#   None
#
# * Alias methods
#   class Game_Screen
#	 def initialize
#	 def clear
#	 def update
#
#   class Game_Map
#	 def setup(map_id)
#
#   class Spriteset_Map
#	 def initialize
#	 def dispose
#	 def update
#
#   class Game_Interpreter
#	 def comment_call
#
#------------------------------------------------------------------------------
# Instructions:
#  To instal the script, open you script editor and paste this script on
#  a new section on bellow the Materials section. This script must also
#  be bellow the script 'Victor Engine - Basic'
#  The fogs must be placed on the folder "Graphics/Fogs". Create a folder
#  named "Fogs" on the Graphics folder.
#
#------------------------------------------------------------------------------
# Maps and Comment calls note tags:
#  Tags to be used on the Maps note box in the database or in events
#  comment box, works like a script call
#
#  <fog effect>
#  settings
#  </fog effect>
#   Create a fog effect on the map, add the following values to the info
#   the ID and name must be added, other values are optional.
#	 id: x	  : fog ID
#	 name: "x"  : fog graphic filename ("filename")
#	 opacity: x : fog opacity (0-255)
#	 move: x    : fog screen movement (32 = fog follows the map)
#	 zoom: x    : fog zoom (100 = default size)
#	 hue: x	 : fog hue (0-360)
#	 blend: x   : fog blend type (0: normal, 1: add, 2: subtract)
#	 depth: x   : fog Z axis (300 = default value)
#
#  <fog opacity id: o, d>
#   This tag allows to change the fog opacity gradually
#	 id : fog ID
#	 o  : new opacity (0-255)
#	 d  : wait until complete change (60 frames = 1 second)
#
#  <fog move id: x, y>
#   This tag adds fog continuous movement
#	 id : fog ID
#	 x  : horizontal movement, can be positive or negative
#	 y  : vertical movement, can be positive or negative
#
#  <fog  tone id: r, g, b, y, d>
#   This tag allows to change the fog opacity gradually
#	 id : fog ID
#	 r  : red tone   (0-255, can be negative)
#	 g  : green tone (0-255, can be negative)
#	 b  : blue tone  (0-255, can be negative)
#	 y  : gray tone  (0-255)
#	 d  : wait until complete change (60 frames = 1 second)
#
#------------------------------------------------------------------------------
# Additional instructions:
#
#   Map note tags commands are called right when enters the map, comment calls
#   are called during the event process.
#
#==============================================================================
#==============================================================================
# ** Victor Engine
#------------------------------------------------------------------------------
#   Setting module for the Victor Engine
#==============================================================================
module Victor_Engine
 #--------------------------------------------------------------------------
 # * Set fogs visibility on battle
 #    When true, fogs are visible on battle
 #--------------------------------------------------------------------------
 VE_BATTLE_FOGS = false
end
$imported[:ve_fog_effects] = true
#==============================================================================
# ** Cache
#------------------------------------------------------------------------------
#  This module loads each of graphics, creates a Bitmap object, and retains it.
# To speed up load times and conserve memory, this module holds the created
# Bitmap object in the internal hash, allowing the program to return
# preexisting objects when the same bitmap is requested again.
#==============================================================================
module Cache
 #--------------------------------------------------------------------------
 # * New method: fogs
 #--------------------------------------------------------------------------
 def self.fogs(filename)
   self.load_bitmap('Graphics/Fogs/', filename)
 end
end
#==============================================================================
# ** Game_Screen
#------------------------------------------------------------------------------
#  This class handles screen maintenance data, such as change in color tone,
# flashes, etc. It's used within the Game_Map and Game_Troop classes.
#==============================================================================
class Game_Screen
 #--------------------------------------------------------------------------
 # * Public Instance Variables
 #--------------------------------------------------------------------------
 attr_reader   :fogs
 #--------------------------------------------------------------------------
 # * Alias method: initialize
 #--------------------------------------------------------------------------
 alias :initialize_ve_fog_effects :initialize
 def initialize
   @fogs = Game_Fogs.new
   initialize_ve_fog_effects
 end
 #--------------------------------------------------------------------------
 # * Alias method: clear
 #--------------------------------------------------------------------------
 alias :clear_ve_fog_effects :clear
 def clear
   clear_ve_fog_effects
   clear_fogs
 end
 #--------------------------------------------------------------------------
 # * Alias method: update
 #--------------------------------------------------------------------------
 alias :update_ve_fog_effects :update
 def update
   update_ve_fog_effects
   update_fogs
 end
 #--------------------------------------------------------------------------
 # * New method: clear_fogs
 #--------------------------------------------------------------------------
 def clear_fogs
   @fogs.each {|fog| fog.erase }
 end
 #--------------------------------------------------------------------------
 # * New method: update_fogs
 #--------------------------------------------------------------------------
 def update_fogs
   @fogs.each {|fog| fog.update }
 end
 #--------------------------------------------------------------------------
 # * New method: create_fog
 #--------------------------------------------------------------------------
 def create_fog(*args)
   @fogs[args.first].show(*args)
 end
 #--------------------------------------------------------------------------
 # * New method: set_fog_move
 #--------------------------------------------------------------------------
 def set_fog_move(id, sx, sy)
   @fogs[id].start_movement(sx, sy)
 end
 #--------------------------------------------------------------------------
 # * New method: set_fog_tone
 #--------------------------------------------------------------------------
 def set_fog_tone(id, red, green, blue, gray, duration = 0)
   tone = Tone.new(red, green, blue, gray)
   @fogs[id].start_tone_change(tone, duration)
 end
 #--------------------------------------------------------------------------
 # * New method: set_fog_opacity
 #--------------------------------------------------------------------------
 def set_fog_opacity(id, opacity, duration = 0)
   @fogs[id].start_opacity_change(opacity, duration)
 end
end
#==============================================================================
# ** Game_Map
#------------------------------------------------------------------------------
#  This class handles maps. It includes scrolling and passage determination
# functions. The instance of this class is referenced by $game_map.
#==============================================================================
class Game_Map
 #--------------------------------------------------------------------------
 # * Alias method: setup
 #--------------------------------------------------------------------------
 alias :setup_ve_fog_effects :setup
 def setup(map_id)
   setup_ve_fog_effects(map_id)
   setup_fogs_effect
 end
 #--------------------------------------------------------------------------
 # * New method: setup_fogs_effect
 #--------------------------------------------------------------------------
 def setup_fogs_effect
   create_fog(note)
   set_fog_opacity(note)
   set_fog_move(note)
   set_fog_tone(note)
 end
 #--------------------------------------------------------------------------
 # * New method: create_fog
 #--------------------------------------------------------------------------
 def create_fog(note)
   regexp = /<FOG EFFECT>([^><]*)<\/FOG EFFECT>/im
   note.scan(regexp) do |info|
  setup_fog(info.first)
   end
 end
 #--------------------------------------------------------------------------
 # * New method: set_fog_opacity
 #--------------------------------------------------------------------------
 def set_fog_opacity(note)
   regexp = /<FOG OPACITY (\d+): ((?:\d+,?\s*){2})>/i
   note.scan(regexp) do  |id, o, d|
  $game_map.screen.set_fog_opacity(id.to_i, o.to_i, d.to_i)
   end
 end
 #--------------------------------------------------------------------------
 # * New method: set_fog_move
 #--------------------------------------------------------------------------
 def set_fog_move(note)
   regexp = /<FOG MOVE (\d+): ((?:[+-]?\d+,?\s*){2})>/i
   note.scan(regexp) do |id, sx, sy|
  $game_map.screen.set_fog_move(id.to_i, sx.to_i, sy.to_i)
   end
 end
 #--------------------------------------------------------------------------
 # * New method: set_fog_tone
 #--------------------------------------------------------------------------
 def set_fog_tone(note)
   regexp = /<FOG TONE (\d+): ((?:\d+,?\s*){5})>/i
   note.scan(regexp) do |i, r, g, b, a, d|
  info = [i.to_i, r.to_i, g.to_i, b.to_i, a.to_i, d.to_i]
  $game_map.screen.set_fog_tone(*info)
   end
 end
 #--------------------------------------------------------------------------
 # * New method: setup_fog
 #--------------------------------------------------------------------------
 def setup_fog(info)
   id    = info =~ /ID: (\d+)/i	   ? $1.to_i : 0
   name  = info =~ /NAME: \"(.*)\"/i  ? $1.dup  : ""
   op    = info =~ /OPACITY: (\d+)/i  ? $1.to_i : 192
   move  = info =~ /MOVE: (\d+)/i	 ? $1.to_i : 32
   zoom  = info =~ /ZOOM: (\d+)/i	 ? $1.to_f : 100.0
   hue   = info =~ /HUE: (\d+)/i	  ? $1.to_i : 0
   blend = info =~ /BLEND: (\d+)/i    ? $1.to_i : 0
   depth = info =~ /DEPTH: (\-?\d+)/i ? $1.to_i : 300
   $game_map.screen.create_fog(id, name, op, move, zoom, hue, blend, depth)
 end
end
#==============================================================================
# ** Game_Interpreter
#------------------------------------------------------------------------------
#  An interpreter for executing event commands. This class is used within the
# Game_Map, Game_Troop, and Game_Event classes.
#==============================================================================
class Game_Interpreter
 #--------------------------------------------------------------------------
 # * Alias method: comment_call
 #--------------------------------------------------------------------------
 alias :comment_call_ve_fog_effects :comment_call
 def comment_call
   call_create_fog_effect
   comment_call_ve_fog_effects
 end
 #--------------------------------------------------------------------------
 # * New method: call_create_fog_effect
 #--------------------------------------------------------------------------
 def call_create_fog_effect
   $game_map.create_fog(note)
   $game_map.set_fog_opacity(note)
   $game_map.set_fog_move(note)
   $game_map.set_fog_tone(note)
 end
end
#==============================================================================
# ** Spriteset_Map
#------------------------------------------------------------------------------
#  Esta classe reune os sprites da tela de mapa e tilesets. Esta classe é
# usada internamente pela classe Scene_Map.
#==============================================================================
class Spriteset_Map
 #--------------------------------------------------------------------------
 # * Alias method: initialize
 #--------------------------------------------------------------------------
 alias :initialize_ve_fog_effects :initialize
 def initialize
   create_fogs
   initialize_ve_fog_effects
 end
 #--------------------------------------------------------------------------
 # * Alias method: dispose
 #--------------------------------------------------------------------------
 alias :dispose_ve_fog_effects :dispose
 def dispose
   dispose_ve_fog_effects
   dispose_fogs
 end
 #--------------------------------------------------------------------------
 # * Alias method: update
 #--------------------------------------------------------------------------
 alias :update_ve_fog_effects :update
 def update
   update_ve_fog_effects
   update_fogs
 end
 #--------------------------------------------------------------------------
 # * New method: create_fogs
 #--------------------------------------------------------------------------
 def create_fogs
   @fog_sprites = []
 end
 #--------------------------------------------------------------------------
 # * New method: dispose_fogs
 #--------------------------------------------------------------------------
 def dispose_fogs
   if @fog_sprites
  @fog_sprites.compact.each {|sprite| sprite.dispose }
  @fog_sprites.clear
   end
 end
 #--------------------------------------------------------------------------
 # * New method: update_fogs
 #--------------------------------------------------------------------------
 def update_fogs
   $game_map.screen.fogs.each do |fog|
  @fog_sprites[fog.id] ||= Sprite_Fog.new(@light_viewport, fog)
  @fog_sprites[fog.id].update
   end
 end
end
#==============================================================================
# ** Spriteset_Battle
#------------------------------------------------------------------------------
#  This class brings together battle screen sprites. It's used within the
# Scene_Battle class.
#==============================================================================
class Spriteset_Battle
 #--------------------------------------------------------------------------
 # * Alias method: initialize
 #--------------------------------------------------------------------------
 alias :initialize_ve_fog_effects :initialize
 def initialize
   create_fogs if VE_BATTLE_FOGS
   initialize_ve_fog_effects
 end
 #--------------------------------------------------------------------------
 # * Alias method: dispose
 #--------------------------------------------------------------------------
 alias :dispose_ve_fog_effects :dispose
 def dispose
   dispose_fogs if VE_BATTLE_FOGS
   dispose_ve_fog_effects
 end
 #--------------------------------------------------------------------------
 # * Alias method: update
 #--------------------------------------------------------------------------
 alias :update_ve_fog_effects :update
 def update
   update_fogs if VE_BATTLE_FOGS
   update_ve_fog_effects
 end
 #--------------------------------------------------------------------------
 # * New method: create_fogs
 #--------------------------------------------------------------------------
 def create_fogs
   @fog_sprites = []
 end
 #--------------------------------------------------------------------------
 # * New method: dispose_fogs
 #--------------------------------------------------------------------------
 def dispose_fogs
   if @fog_sprite
  $game_map.screen.fogs.clear
  @fog_sprites.compact.each {|sprite| sprite.dispose }
  @fog_sprites.clear
   end
 end
 #--------------------------------------------------------------------------
 # * New method: update_fogs
 #--------------------------------------------------------------------------
 def update_fogs
   $game_map.screen.fogs.each do |fog|
  @fog_sprites[fog.id] ||= Sprite_Fog.new(@viewport1, fog)
  @fog_sprites[fog.id].update
   end
 end
end
#==============================================================================
# ** Scene_Map
#------------------------------------------------------------------------------
#  This class performs the map screen processing.
#==============================================================================
class Scene_Map
 #--------------------------------------------------------------------------
 # * Alias method: pre_transfer
 #--------------------------------------------------------------------------
 alias :pre_transfer_ve_fog_effects :pre_transfer
 def pre_transfer
   pre_transfer_ve_fog_effects
   if $game_player.new_map_id !=  $game_map.map_id
  @spriteset.dispose_fogs
  $game_map.screen.clear_fogs
  $game_map.screen.fogs.clear
   end
 end
end
#==============================================================================
# ** Game_Fog
#------------------------------------------------------------------------------
#  This class handles fog data. This class is used within the Game_Fogs class.
#==============================================================================
class Game_Fog
 #--------------------------------------------------------------------------
 # * Public Instance Variables
 #--------------------------------------------------------------------------
 attr_reader   :id
 attr_reader   :name
 attr_reader   :hue
 attr_reader   :sx
 attr_reader   :sy
 attr_reader   :ox
 attr_reader   :oy
 attr_reader   :depth
 attr_reader   :move
 attr_reader   :zoom_x
 attr_reader   :zoom_y
 attr_reader   :opacity
 attr_reader   :blend_type
 attr_reader   :tone
 #--------------------------------------------------------------------------
 # * initialize
 #--------------------------------------------------------------------------
 def initialize(id)
   @id = id
   init_basic
   init_target
   init_tone
 end
 #--------------------------------------------------------------------------
 # * init_basic
 #--------------------------------------------------------------------------
 def init_basic
   @name    = ""
   @depth   = 300
   @zoom_x  = 1.0
   @zoom_y  = 1.0
   @move_x  = 32
   @move_y  = 32
   @opacity = 255.0
   @blend_type = 1
   @sx  = 0
   @sy  = 0
   @ox  = 0
   @oy  = 0
   @hue = 0
   @opacity_duration = 0
   @tone_duration    = 0
 end
 #--------------------------------------------------------------------------
 # * init_target
 #--------------------------------------------------------------------------
 def init_target
   @target_x = @x
   @target_y = @y
   @target_zoom_x  = @zoom_x
   @target_zoom_y  = @zoom_y
   @target_opacity = @opacity
 end
 #--------------------------------------------------------------------------
 # * init_tone
 #--------------------------------------------------------------------------
 def init_tone
   @tone	    = Tone.new
   @tone_target = Tone.new
   @tone_duration = 0
 end
 #--------------------------------------------------------------------------
 # * show
 #--------------------------------------------------------------------------
 def show(id, name, opacity, move, zoom, hue, blend, depth)
   @id	  = id
   @name    = name
   @move    = move
   @zoom_x  = zoom.to_f
   @zoom_y  = zoom.to_f
   @depth   = depth
   @opacity = opacity.to_f
   @blend_type = blend
   init_target
   init_tone
 end
 #--------------------------------------------------------------------------
 # * start_movement
 #--------------------------------------------------------------------------
 def start_movement(sx, sy)
   @sx = sx
   @sy = sy
 end
 #--------------------------------------------------------------------------
 # * start_tone_change
 #--------------------------------------------------------------------------
 def start_tone_change(tone, duration)
   @tone_target   = tone.clone
   @tone_duration = [duration.to_i, 0].max
   @tone = @tone_target.clone if @tone_duration == 0
 end
 #--------------------------------------------------------------------------
 # * start_opacity_change
 #--------------------------------------------------------------------------
 def start_opacity_change(opacity, duration)
   @opacity_target   = opacity
   @opacity_duration = [duration.to_i, 0].max
   @opacity = @opacity_target if @opacity_duration == 0
 end
 #--------------------------------------------------------------------------
 # * erase
 #--------------------------------------------------------------------------
 def erase
   @name = ""
 end
 #--------------------------------------------------------------------------
 # * update
 #--------------------------------------------------------------------------
 def update
   update_move
   update_tone
   update_opacity
 end
 #--------------------------------------------------------------------------
 # * update_move
 #--------------------------------------------------------------------------
 def update_move
   @ox -= @sx / 16.0
   @oy -= @sy / 16.0
 end
 #--------------------------------------------------------------------------
 # * update_opacity
 #--------------------------------------------------------------------------
 def update_opacity
   return if @opacity_duration == 0
   d = @opacity_duration
   @opacity = (@opacity * (d - 1) + @opacity_target) / d
   @opacity_duration -= 1
 end
 #--------------------------------------------------------------------------
 # * update_tone
 #--------------------------------------------------------------------------
 def update_tone
   return if @tone_duration == 0
   d = @tone_duration
   @tone.red   = (@tone.red   * (d - 1) + @tone_target.red)   / d
   @tone.green = (@tone.green * (d - 1) + @tone_target.green) / d
   @tone.blue  = (@tone.blue  * (d - 1) + @tone_target.blue)  / d
   @tone.gray  = (@tone.gray  * (d - 1) + @tone_target.gray)  / d
   @tone_duration -= 1
 end
end
#==============================================================================
# ** Game_Fogs
#------------------------------------------------------------------------------
#  This class handles fogs. This class is used within the Game_Screen class.
#==============================================================================
class Game_Fogs
 #--------------------------------------------------------------------------
 # * initialize
 #--------------------------------------------------------------------------
 def initialize
   @data = []
 end
 #--------------------------------------------------------------------------
 # * []
 #--------------------------------------------------------------------------
 def [](number)
   @data[number] ||= Game_Fog.new(number)
 end
 #--------------------------------------------------------------------------
 # * each
 #--------------------------------------------------------------------------
 def each
   @data.compact.each {|fog| yield fog } if block_given?
 end
 #--------------------------------------------------------------------------
 # * clear
 #--------------------------------------------------------------------------
 def clear
   @data.clear
 end
end
#==============================================================================
# ** Sprite_Fog
#------------------------------------------------------------------------------
#  This sprite is used to display fgos. It observes a instance of the
# Game_Fog class and automatically changes sprite conditions.
#==============================================================================
class Sprite_Fog < Plane
 #--------------------------------------------------------------------------
 # * initialize
 #--------------------------------------------------------------------------
 def initialize(viewport, fog)
   super(viewport)
   @fog = fog
   update
 end
 #--------------------------------------------------------------------------
 # * dispose
 #--------------------------------------------------------------------------
 def dispose
   bitmap.dispose if bitmap
   super
 end
 #--------------------------------------------------------------------------
 # * update
 #--------------------------------------------------------------------------
 def update
   update_bitmap
   update_position
   update_zoom
   update_other
 end
 #--------------------------------------------------------------------------
 # * update bitmap
 #--------------------------------------------------------------------------
 def update_bitmap
   if @fog_name != @fog.name
  self.bitmap = Cache.fogs(@fog.name)
  @fog_name = @fog.name.dup
   end
 end
 #--------------------------------------------------------------------------
 # * update_position
 #--------------------------------------------------------------------------
 def update_position
   self.ox = $game_map.display_x * @fog.move + @fog.ox
   self.oy = $game_map.display_y * @fog.move + @fog.oy
   self.z  = @fog.depth
 end
 #--------------------------------------------------------------------------
 # * update_zoom
 #--------------------------------------------------------------------------
 def update_zoom
   self.zoom_x = @fog.zoom_x / 100.0
   self.zoom_y = @fog.zoom_y / 100.0
 end
 #--------------------------------------------------------------------------
 # * update_other
 #--------------------------------------------------------------------------
 def update_other
   self.opacity    = @fog.opacity
   self.blend_type = @fog.blend_type
   self.tone.set(@fog.tone)
 end
end



Share this post


Link to post
Share on other sites

@Lear: test this edited fog (only edit viewport ~)



#==============================================================================
# ** Victor Engine - Fog Effect
#------------------------------------------------------------------------------
# Author : Victor Sant
#
# Version History:
#  v 1.00 - 2011.12.19 - First relase
#  v 1.01 - 2011.12.30 - Faster Regular Expressions
#  v 1.02 - 2012.01.02 - Fixed fog dispose when changing maps
#------------------------------------------------------------------------------
#  This script allows to add varied of effects to the maps. Fos are picutres
# placed above the player layer and loops. Differently from pictures the fog
# follows the map movement instead of the screen (this behavior can be changed)
# You can add various fogs to the map.
#------------------------------------------------------------------------------
# Compatibility
#   Requires the script 'Victor Engine - Basic Module'
#
# * Overwrite methods
#   None
#
# * Alias methods
#   class Game_Screen
#	 def initialize
#	 def clear
#	 def update
#
#   class Game_Map
#	 def setup(map_id)
#
#   class Spriteset_Map
#	 def initialize
#	 def dispose
#	 def update
#
#   class Game_Interpreter
#	 def comment_call
#
#------------------------------------------------------------------------------
# Instructions:
#  To instal the script, open you script editor and paste this script on
#  a new section on bellow the Materials section. This script must also
#  be bellow the script 'Victor Engine - Basic'
#  The fogs must be placed on the folder "Graphics/Fogs". Create a folder
#  named "Fogs" on the Graphics folder.
#
#------------------------------------------------------------------------------
# Maps and Comment calls note tags:
#  Tags to be used on the Maps note box in the database or in events
#  comment box, works like a script call
#
#  <fog effect>
#  settings
#  </fog effect>
#   Create a fog effect on the map, add the following values to the info
#   the ID and name must be added, other values are optional.
#	 id: x	  : fog ID
#	 name: "x"  : fog graphic filename ("filename")
#	 opacity: x : fog opacity (0-255)
#	 move: x	: fog screen movement (32 = fog follows the map)
#	 zoom: x	: fog zoom (100 = default size)
#	 hue: x	 : fog hue (0-360)
#	 blend: x   : fog blend type (0: normal, 1: add, 2: subtract)
#	 depth: x   : fog Z axis (300 = default value)
#
#  <fog opacity id: o, d>
#   This tag allows to change the fog opacity gradually
#	 id : fog ID
#	 o  : new opacity (0-255)
#	 d  : wait until complete change (60 frames = 1 second)
#
#  <fog move id: x, y>
#   This tag adds fog continuous movement
#	 id : fog ID
#	 x  : horizontal movement, can be positive or negative
#	 y  : vertical movement, can be positive or negative
#
#  <fog  tone id: r, g, b, y, d>
#   This tag allows to change the fog opacity gradually
#	 id : fog ID
#	 r  : red tone   (0-255, can be negative)
#	 g  : green tone (0-255, can be negative)
#	 b  : blue tone  (0-255, can be negative)
#	 y  : gray tone  (0-255)
#	 d  : wait until complete change (60 frames = 1 second)
#
#------------------------------------------------------------------------------
# Additional instructions:
#
#   Map note tags commands are called right when enters the map, comment calls
#   are called during the event process.
#
#==============================================================================
#==============================================================================
# ** Victor Engine
#------------------------------------------------------------------------------
#   Setting module for the Victor Engine
#==============================================================================
module Victor_Engine
 #--------------------------------------------------------------------------
 # * Set fogs visibility on battle
 #	When true, fogs are visible on battle
 #--------------------------------------------------------------------------
 VE_BATTLE_FOGS = false
end
$imported[:ve_fog_effects] = true
#==============================================================================
# ** Cache
#------------------------------------------------------------------------------
#  This module loads each of graphics, creates a Bitmap object, and retains it.
# To speed up load times and conserve memory, this module holds the created
# Bitmap object in the internal hash, allowing the program to return
# preexisting objects when the same bitmap is requested again.
#==============================================================================
module Cache
 #--------------------------------------------------------------------------
 # * New method: fogs
 #--------------------------------------------------------------------------
 def self.fogs(filename)
self.load_bitmap('Graphics/Fogs/', filename)
 end
end
#==============================================================================
# ** Game_Screen
#------------------------------------------------------------------------------
#  This class handles screen maintenance data, such as change in color tone,
# flashes, etc. It's used within the Game_Map and Game_Troop classes.
#==============================================================================
class Game_Screen
 #--------------------------------------------------------------------------
 # * Public Instance Variables
 #--------------------------------------------------------------------------
 attr_reader   :fogs
 #--------------------------------------------------------------------------
 # * Alias method: initialize
 #--------------------------------------------------------------------------
 alias :initialize_ve_fog_effects :initialize
 def initialize
@fogs = Game_Fogs.new
initialize_ve_fog_effects
 end
 #--------------------------------------------------------------------------
 # * Alias method: clear
 #--------------------------------------------------------------------------
 alias :clear_ve_fog_effects :clear
 def clear
clear_ve_fog_effects
clear_fogs
 end
 #--------------------------------------------------------------------------
 # * Alias method: update
 #--------------------------------------------------------------------------
 alias :update_ve_fog_effects :update
 def update
update_ve_fog_effects
update_fogs
 end
 #--------------------------------------------------------------------------
 # * New method: clear_fogs
 #--------------------------------------------------------------------------
 def clear_fogs
@fogs.each {|fog| fog.erase }
 end
 #--------------------------------------------------------------------------
 # * New method: update_fogs
 #--------------------------------------------------------------------------
 def update_fogs
@fogs.each {|fog| fog.update }
 end
 #--------------------------------------------------------------------------
 # * New method: create_fog
 #--------------------------------------------------------------------------
 def create_fog(*args)
@fogs[args.first].show(*args)
 end
 #--------------------------------------------------------------------------
 # * New method: set_fog_move
 #--------------------------------------------------------------------------
 def set_fog_move(id, sx, sy)
@fogs[id].start_movement(sx, sy)
 end
 #--------------------------------------------------------------------------
 # * New method: set_fog_tone
 #--------------------------------------------------------------------------
 def set_fog_tone(id, red, green, blue, gray, duration = 0)
tone = Tone.new(red, green, blue, gray)
@fogs[id].start_tone_change(tone, duration)
 end
 #--------------------------------------------------------------------------
 # * New method: set_fog_opacity
 #--------------------------------------------------------------------------
 def set_fog_opacity(id, opacity, duration = 0)
@fogs[id].start_opacity_change(opacity, duration)
 end
end
#==============================================================================
# ** Game_Map
#------------------------------------------------------------------------------
#  This class handles maps. It includes scrolling and passage determination
# functions. The instance of this class is referenced by $game_map.
#==============================================================================
class Game_Map
 #--------------------------------------------------------------------------
 # * Alias method: setup
 #--------------------------------------------------------------------------
 alias :setup_ve_fog_effects :setup
 def setup(map_id)
setup_ve_fog_effects(map_id)
setup_fogs_effect
 end
 #--------------------------------------------------------------------------
 # * New method: setup_fogs_effect
 #--------------------------------------------------------------------------
 def setup_fogs_effect
create_fog(note)
set_fog_opacity(note)
set_fog_move(note)
set_fog_tone(note)
 end
 #--------------------------------------------------------------------------
 # * New method: create_fog
 #--------------------------------------------------------------------------
 def create_fog(note)
regexp = /<FOG EFFECT>([^><]*)<\/FOG EFFECT>/im
note.scan(regexp) do |info|
  setup_fog(info.first)
end
 end
 #--------------------------------------------------------------------------
 # * New method: set_fog_opacity
 #--------------------------------------------------------------------------
 def set_fog_opacity(note)
regexp = /<FOG OPACITY (\d+): ((?:\d+,?\s*){2})>/i
note.scan(regexp) do  |id, o, d|
  $game_map.screen.set_fog_opacity(id.to_i, o.to_i, d.to_i)
end
 end
 #--------------------------------------------------------------------------
 # * New method: set_fog_move
 #--------------------------------------------------------------------------
 def set_fog_move(note)
regexp = /<FOG MOVE (\d+): ((?:[+-]?\d+,?\s*){2})>/i
note.scan(regexp) do |id, sx, sy|
  $game_map.screen.set_fog_move(id.to_i, sx.to_i, sy.to_i)
end
 end
 #--------------------------------------------------------------------------
 # * New method: set_fog_tone
 #--------------------------------------------------------------------------
 def set_fog_tone(note)
regexp = /<FOG TONE (\d+): ((?:\d+,?\s*){5})>/i
note.scan(regexp) do |i, r, g, b, a, d|
  info = [i.to_i, r.to_i, g.to_i, b.to_i, a.to_i, d.to_i]
  $game_map.screen.set_fog_tone(*info)
end
 end
 #--------------------------------------------------------------------------
 # * New method: setup_fog
 #--------------------------------------------------------------------------
 def setup_fog(info)
id	= info =~ /ID: (\d+)/i	   ? $1.to_i : 0
name  = info =~ /NAME: \"(.*)\"/i  ? $1.dup  : ""
op	= info =~ /OPACITY: (\d+)/i  ? $1.to_i : 192
move  = info =~ /MOVE: (\d+)/i	 ? $1.to_i : 32
zoom  = info =~ /ZOOM: (\d+)/i	 ? $1.to_f : 100.0
hue   = info =~ /HUE: (\d+)/i	  ? $1.to_i : 0
blend = info =~ /BLEND: (\d+)/i	? $1.to_i : 0
depth = info =~ /DEPTH: (\-?\d+)/i ? $1.to_i : 300
$game_map.screen.create_fog(id, name, op, move, zoom, hue, blend, depth)
 end
end
#==============================================================================
# ** Game_Interpreter
#------------------------------------------------------------------------------
#  An interpreter for executing event commands. This class is used within the
# Game_Map, Game_Troop, and Game_Event classes.
#==============================================================================
class Game_Interpreter
 #--------------------------------------------------------------------------
 # * Alias method: comment_call
 #--------------------------------------------------------------------------
 alias :comment_call_ve_fog_effects :comment_call
 def comment_call
call_create_fog_effect
comment_call_ve_fog_effects
 end
 #--------------------------------------------------------------------------
 # * New method: call_create_fog_effect
 #--------------------------------------------------------------------------
 def call_create_fog_effect
$game_map.create_fog(note)
$game_map.set_fog_opacity(note)
$game_map.set_fog_move(note)
$game_map.set_fog_tone(note)
 end
end
#==============================================================================
# ** Spriteset_Map
#------------------------------------------------------------------------------
#  Esta classe reune os sprites da tela de mapa e tilesets. Esta classe é
# usada internamente pela classe Scene_Map.
#==============================================================================
class Spriteset_Map
 #--------------------------------------------------------------------------
 # * Alias method: initialize
 #--------------------------------------------------------------------------
 alias :initialize_ve_fog_effects :initialize
 def initialize
create_fogs
initialize_ve_fog_effects
 end
 #--------------------------------------------------------------------------
 # * Alias method: dispose
 #--------------------------------------------------------------------------
 alias :dispose_ve_fog_effects :dispose
 def dispose
dispose_ve_fog_effects
dispose_fogs
 end
 #--------------------------------------------------------------------------
 # * Alias method: update
 #--------------------------------------------------------------------------
 alias :update_ve_fog_effects :update
 def update
update_ve_fog_effects
update_fogs
 end
 #--------------------------------------------------------------------------
 # * New method: create_fogs
 #--------------------------------------------------------------------------
 def create_fogs
@fog_sprites = []
 end
 #--------------------------------------------------------------------------
 # * New method: dispose_fogs
 #--------------------------------------------------------------------------
 def dispose_fogs
if @fog_sprites
  @fog_sprites.compact.each {|sprite| sprite.dispose }
  @fog_sprites.clear
end
 end
 #--------------------------------------------------------------------------
 # * New method: update_fogs
 #--------------------------------------------------------------------------
 def update_fogs
$game_map.screen.fogs.each do |fog|
  @fog_sprites[fog.id] ||= Sprite_Fog.new(@light_viewport, fog)
  @fog_sprites[fog.id].update
end
 end
end
#==============================================================================
# ** Spriteset_Battle
#------------------------------------------------------------------------------
#  This class brings together battle screen sprites. It's used within the
# Scene_Battle class.
#==============================================================================
class Spriteset_Battle
 #--------------------------------------------------------------------------
 # * Alias method: initialize
 #--------------------------------------------------------------------------
 alias :initialize_ve_fog_effects :initialize
 def initialize
create_fogs if VE_BATTLE_FOGS
initialize_ve_fog_effects
 end
 #--------------------------------------------------------------------------
 # * Alias method: dispose
 #--------------------------------------------------------------------------
 alias :dispose_ve_fog_effects :dispose
 def dispose
dispose_fogs if VE_BATTLE_FOGS
dispose_ve_fog_effects
 end
 #--------------------------------------------------------------------------
 # * Alias method: update
 #--------------------------------------------------------------------------
 alias :update_ve_fog_effects :update
 def update
update_fogs if VE_BATTLE_FOGS
update_ve_fog_effects
 end
 #--------------------------------------------------------------------------
 # * New method: create_fogs
 #--------------------------------------------------------------------------
 def create_fogs
@fog_sprites = []
 end
 #--------------------------------------------------------------------------
 # * New method: dispose_fogs
 #--------------------------------------------------------------------------
 def dispose_fogs
if @fog_sprite
  $game_map.screen.fogs.clear
  @fog_sprites.compact.each {|sprite| sprite.dispose }
  @fog_sprites.clear
end
 end
 #--------------------------------------------------------------------------
 # * New method: update_fogs
 #--------------------------------------------------------------------------
 def update_fogs
$game_map.screen.fogs.each do |fog|
  @fog_sprites[fog.id] ||= Sprite_Fog.new(@viewport1, fog)
  @fog_sprites[fog.id].update
end
 end
end
#==============================================================================
# ** Scene_Map
#------------------------------------------------------------------------------
#  This class performs the map screen processing.
#==============================================================================
class Scene_Map
 #--------------------------------------------------------------------------
 # * Alias method: pre_transfer
 #--------------------------------------------------------------------------
 alias :pre_transfer_ve_fog_effects :pre_transfer
 def pre_transfer
pre_transfer_ve_fog_effects
if $game_player.new_map_id !=  $game_map.map_id
  @spriteset.dispose_fogs
  $game_map.screen.clear_fogs
  $game_map.screen.fogs.clear
end
 end
end
#==============================================================================
# ** Game_Fog
#------------------------------------------------------------------------------
#  This class handles fog data. This class is used within the Game_Fogs class.
#==============================================================================
class Game_Fog
 #--------------------------------------------------------------------------
 # * Public Instance Variables
 #--------------------------------------------------------------------------
 attr_reader   :id
 attr_reader   :name
 attr_reader   :hue
 attr_reader   :sx
 attr_reader   :sy
 attr_reader   :ox
 attr_reader   :oy
 attr_reader   :depth
 attr_reader   :move
 attr_reader   :zoom_x
 attr_reader   :zoom_y
 attr_reader   :opacity
 attr_reader   :blend_type
 attr_reader   :tone
 #--------------------------------------------------------------------------
 # * initialize
 #--------------------------------------------------------------------------
 def initialize(id)
@id = id
init_basic
init_target
init_tone
 end
 #--------------------------------------------------------------------------
 # * init_basic
 #--------------------------------------------------------------------------
 def init_basic
@name	= ""
@depth   = 300
@zoom_x  = 1.0
@zoom_y  = 1.0
@move_x  = 32
@move_y  = 32
@opacity = 255.0
@blend_type = 1
@sx  = 0
@sy  = 0
@ox  = 0
@oy  = 0
@hue = 0
@opacity_duration = 0
@tone_duration	= 0
 end
 #--------------------------------------------------------------------------
 # * init_target
 #--------------------------------------------------------------------------
 def init_target
@target_x = @x
@target_y = @y
@target_zoom_x  = @zoom_x
@target_zoom_y  = @zoom_y
@target_opacity = @opacity
 end
 #--------------------------------------------------------------------------
 # * init_tone
 #--------------------------------------------------------------------------
 def init_tone
@tone		= Tone.new
@tone_target = Tone.new
@tone_duration = 0
 end
 #--------------------------------------------------------------------------
 # * show
 #--------------------------------------------------------------------------
 def show(id, name, opacity, move, zoom, hue, blend, depth)
@id	  = id
@name	= name
@move	= move
@zoom_x  = zoom.to_f
@zoom_y  = zoom.to_f
@depth   = depth
@opacity = opacity.to_f
@blend_type = blend
init_target
init_tone
 end
 #--------------------------------------------------------------------------
 # * start_movement
 #--------------------------------------------------------------------------
 def start_movement(sx, sy)
@sx = sx
@sy = sy
 end
 #--------------------------------------------------------------------------
 # * start_tone_change
 #--------------------------------------------------------------------------
 def start_tone_change(tone, duration)
@tone_target   = tone.clone
@tone_duration = [duration.to_i, 0].max
@tone = @tone_target.clone if @tone_duration == 0
 end
 #--------------------------------------------------------------------------
 # * start_opacity_change
 #--------------------------------------------------------------------------
 def start_opacity_change(opacity, duration)
@opacity_target   = opacity
@opacity_duration = [duration.to_i, 0].max
@opacity = @opacity_target if @opacity_duration == 0
 end
 #--------------------------------------------------------------------------
 # * erase
 #--------------------------------------------------------------------------
 def erase
@name = ""
 end
 #--------------------------------------------------------------------------
 # * update
 #--------------------------------------------------------------------------
 def update
update_move
update_tone
update_opacity
 end
 #--------------------------------------------------------------------------
 # * update_move
 #--------------------------------------------------------------------------
 def update_move
@ox -= @sx / 16.0
@oy -= @sy / 16.0
 end
 #--------------------------------------------------------------------------
 # * update_opacity
 #--------------------------------------------------------------------------
 def update_opacity
return if @opacity_duration == 0
d = @opacity_duration
@opacity = (@opacity * (d - 1) + @opacity_target) / d
@opacity_duration -= 1
 end
 #--------------------------------------------------------------------------
 # * update_tone
 #--------------------------------------------------------------------------
 def update_tone
return if @tone_duration == 0
d = @tone_duration
@tone.red   = (@tone.red   * (d - 1) + @tone_target.red)   / d
@tone.green = (@tone.green * (d - 1) + @tone_target.green) / d
@tone.blue  = (@tone.blue  * (d - 1) + @tone_target.blue)  / d
@tone.gray  = (@tone.gray  * (d - 1) + @tone_target.gray)  / d
@tone_duration -= 1
 end
end
#==============================================================================
# ** Game_Fogs
#------------------------------------------------------------------------------
#  This class handles fogs. This class is used within the Game_Screen class.
#==============================================================================
class Game_Fogs
 #--------------------------------------------------------------------------
 # * initialize
 #--------------------------------------------------------------------------
 def initialize
@data = []
 end
 #--------------------------------------------------------------------------
 # * []
 #--------------------------------------------------------------------------
 def [](number)
@data[number] ||= Game_Fog.new(number)
 end
 #--------------------------------------------------------------------------
 # * each
 #--------------------------------------------------------------------------
 def each
@data.compact.each {|fog| yield fog } if block_given?
 end
 #--------------------------------------------------------------------------
 # * clear
 #--------------------------------------------------------------------------
 def clear
@data.clear
 end
end
#==============================================================================
# ** Sprite_Fog
#------------------------------------------------------------------------------
#  This sprite is used to display fgos. It observes a instance of the
# Game_Fog class and automatically changes sprite conditions.
#==============================================================================
class Sprite_Fog < Plane
 #--------------------------------------------------------------------------
 # * initialize
 #--------------------------------------------------------------------------
 def initialize(viewport, fog)
super(viewport)
@fog = fog
update
 end
 #--------------------------------------------------------------------------
 # * dispose
 #--------------------------------------------------------------------------
 def dispose
bitmap.dispose if bitmap
super
 end
 #--------------------------------------------------------------------------
 # * update
 #--------------------------------------------------------------------------
 def update
update_bitmap
update_position
update_zoom
update_other
 end
 #--------------------------------------------------------------------------
 # * update bitmap
 #--------------------------------------------------------------------------
 def update_bitmap
if @fog_name != @fog.name
  self.bitmap = Cache.fogs(@fog.name)
  @fog_name = @fog.name.dup
end
 end
 #--------------------------------------------------------------------------
 # * update_position
 #--------------------------------------------------------------------------
 def update_position
self.ox = $game_map.display_x * @fog.move + @fog.ox
self.oy = $game_map.display_y * @fog.move + @fog.oy
self.z  = @fog.depth
 end
 #--------------------------------------------------------------------------
 # * update_zoom
 #--------------------------------------------------------------------------
 def update_zoom
self.zoom_x = @fog.zoom_x / 100.0
self.zoom_y = @fog.zoom_y / 100.0
 end
 #--------------------------------------------------------------------------
 # * update_other
 #--------------------------------------------------------------------------
 def update_other
self.opacity	= @fog.opacity
self.blend_type = @fog.blend_type
self.tone.set(@fog.tone)
 end
end



Yami, you keep saving my butt. Thank you so very much!! =)

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

×
